Products > Compact Sander (Heavy Duty)

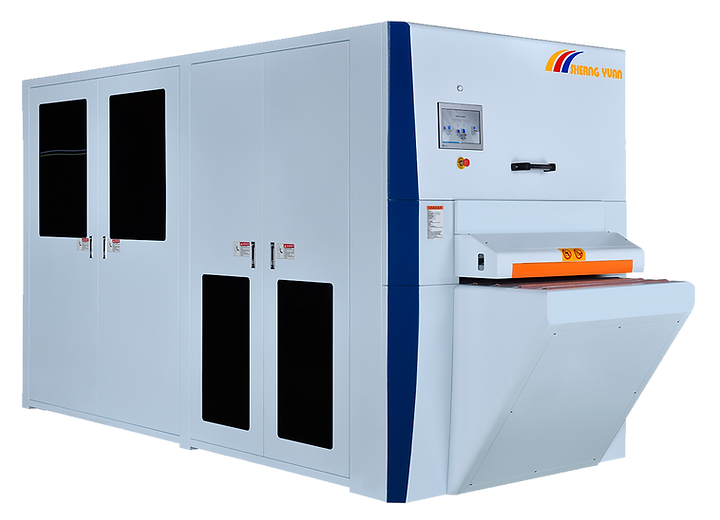

Compact Sander (Heavy Duty)
SD-920RRK (Φ300 / Φ220)
.png)
Product Features
Heavy sanding and thickness calibration of finger joint boards, solid wood and MDF/HDF thickness setting.
Product Specifications
Max. Working Width: 610 / 920 / 1100 / 1300mm
Sanding head options: Single head / Double head / Triple head ( customization is acceptable)
Max. working thickness: 5-130mm
Table height: 900-1030mm ( customization is acceptable)
Mechanical Features
The HMI displays photos of the current alarm allowing the operator to quickly troubleshoot and resolve issues.
Height of the main shaft wheel can be adjusted and the main shaft can also be quickly disassembled and replaced.

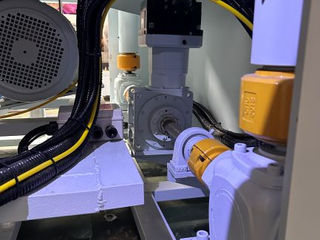

This machine is equipped with servo motor, right-angle gearbox (6 units), and a dual chain drive system, ensuring synchronized operation and stable power transmission.
The conveyor speed is precisely controlled and synchronized by servo controllers (2 motors) preventing any pulling or dragging effect when the top and booom sanding units are in operation.
Specification
➤ SD (Φ300 / Φ220)
-01.png)
Vedio
